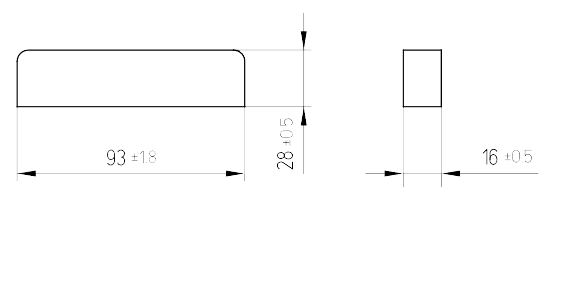

I 93/16/28

I 93/16/28 Ferrite I cores type I93/16/28

کاشکه kaschke

Favourites Add to favorites

Rating

5

Core factor 0/58mm¯¹

eff. magn. path length 258mm

eff. magn. cross section 448mm²

eff. magn. volume 115600mm³

weight 190gr

Labels فریت کاشکه | فریت I شکل برند کاشکه | Ferrite kaschke | Ferrite I cores | ferrite | کاشکه I هسته | I cores Kaschke | هسته های U و I برند کاشکه | kaschke U & I cores ferrite | U and I cores | kaschke ferrite | ferrite U & I cores | I kaschke | |

Sales Expert

Sales ExpertResistor & Impeder ferrite Section

shahab@radelectric.co

Description

Application

Power Transmission
Line Transformers for Producing the High Voltage
Ignition Transformers in the Automotive Industry
